Booles Expansion Theorem - There are also few theorems of Boolean algebra that are needed to be noticed carefully because these make calculation fastest and. Booles expansion theorem often referred to as the Shannon expansion or decomposition is the identity.

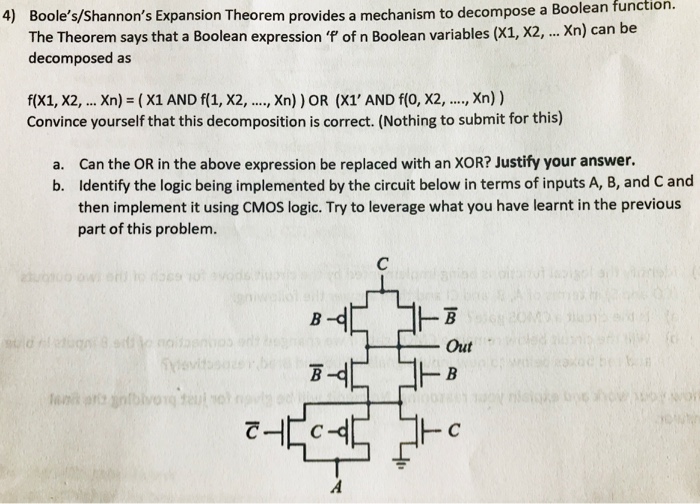

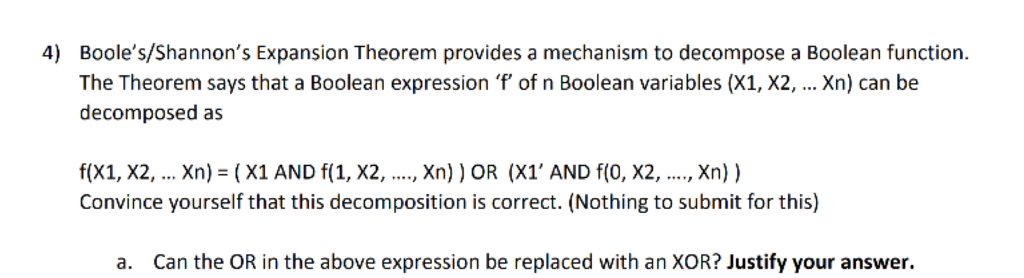

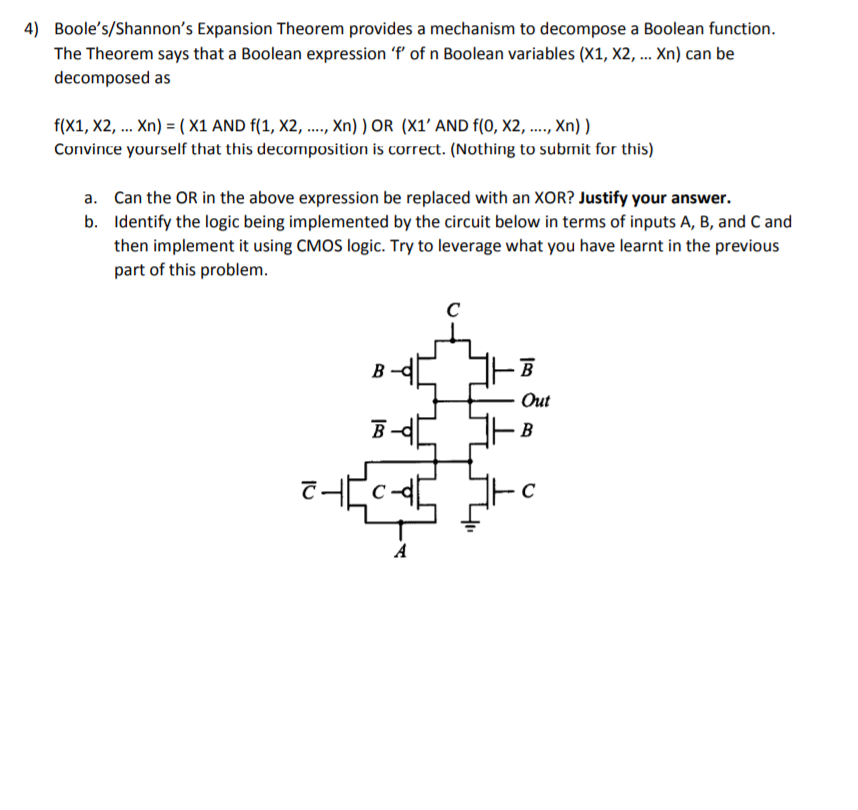

Solved 4 Boole S Shannon S Expansion Theorem Provides A Chegg Com

Shannons expansion and consensus theorem are used for logic optimization Shannons expansion divides the problem into smaller functions.

Booles expansion theorem. While solving the boolean expression these boolean algebra theorems will play a. Discrete Mathematics - Boolean function - booles expansion theoremApologize as in whole vedio I typed bools instead of boolesTARGET STUDENT. AB A B.

According to George Boole symbols can be used to represent the structure of logical thoughts. De Morgans Theorem There are two de Morgans rules or theorems 1 Two separate terms NOR ed together is the same as the two terms inverted Complement and AND ed for example. Superseded by this improved explanation.

It says basically that F is a union of. Booles expansion theorem often referred to as the Shannon expansion or decomposition is the identity. Booles expansion theorem The Shannon expansion or decomposition theorem also known as Booles expansion theorem is an identity which allow the expansion of any logic function to broken down in parts.

Supplementary Text A proof of Booles Expansion Theorem Theorem 143 of LMCS Given classes we say K is an -constituent if it is a constituent for the classes Boole used the following theorem to expand a given expression into its constituents. Theorem which originally follows from Boole-Shannon expansion f or this restricted class of functions. 12 George Boole 1815 - 1864 Review of Boolean Algebra.

One consequence of this theorem is the possibility to implement any logic function using multiplexers. ASCII Table 7-bit ASCII American Standard Code for Information Interchange Decimal Octal Hex Binary Value Keyboard----- ----- --- ----- -----Choi 43 68. A proof of Booles Elimination Theorem Up.

Where is any Boolean function is a variable is the complement of and and are with the argument set equal to and to respectively. F X. The generalised statement of De Morgans theorem along with Shannons Expansion theorem are tabulated in Figure 219.

Where is any Boolean function is a variable is the complement of and and are with the argument set equal to and to. Booles expansion theorem often referred to as the Shannon expansion or decomposition is the identity. EE Engineering Stellenbosch University.

The Shannon Expansion Theorem is used to expand a Boolean logic function F in terms of or with respect to a Boolean variable X as in the following forms. Where is any Boolean function is a variable is the complement of and and are with the argument set equal to and to respectively. DeMorgans theorems provide mathematical verification of the equivalency of the NAND and negative-OR gates and the equivalency of the NOR and negative-AND gates which were discussed in part 3.

The main boolean algebra theorems are De Morgans Theorem Consensus theorem and Shannons Expansion Theorem. Let B be a nonempty set with two 2-input operations a. AB A.

The below section will explain all these boolean algebra theorems. The CKM entries at the bottom of Figures 19 and 20 can be obtained by a direct application of Theorem 4 to the CKM variables and en-. F X 0.

Proof of the Boole-Shannon expansion. We shall call the product in the left hand side of the above equation an eliminant of. Displaystyle Fxcdot F_xxcdot F_x where.

DEMORGANS THEOREMS DeMorgan a mathematician who knew Boole proposed two theorems that are an important part of Boolean algebra. The proof of Shannons theorem by induction for the variable A 1 requires the substitution of the two possible values of A 1 0 and 1 into either of the two forms of the theorem appearing in the tabulation. Booles expansion theorem often referred to as the Shannon expansion or decomposition is the identity.

This type of algebra deals with the rules or laws which are known as laws of Boolean algebra by which the logical operations are carried out. F X 1 X. B 2 Two separate terms NAND ed together is the same as the two terms inverted Complement and OR ed for example.
